Budget Line Louvre Doors
28mm thick Budget Line louvre doors are sold individually. Scroll down to see more information on this product.
Height: Width: 381mm (15") 457mm (18") 533mm (21")
Millimetres Inches Centimetres
Use the boxes above to enter a custom size
Colours and images should be used as
a guide only and may vary from the actual
product. Dimensions quoted may vary slightly
from actual dimensions.

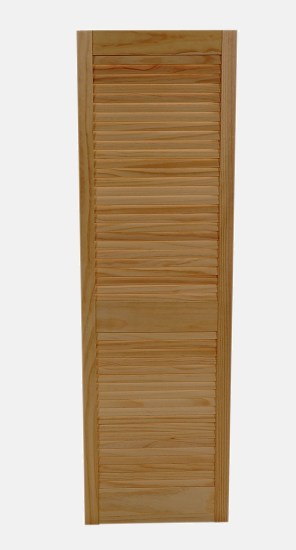

Great value knot free Araucaria pine louvre doors
In addition to our
High Line and White Line Araucaria Pine door ranges, we also offer a budget range of pine louvre doors for those jobs where you might be working to a tight financial budget or a 28mm thick door is not required.
Made to the same high standards as the Araucaria High Line Pine units, our Budget Line Pine louvre range is manufactured from premium grade timber. The only difference is that they are 21mm thick instead of 28mm thick.

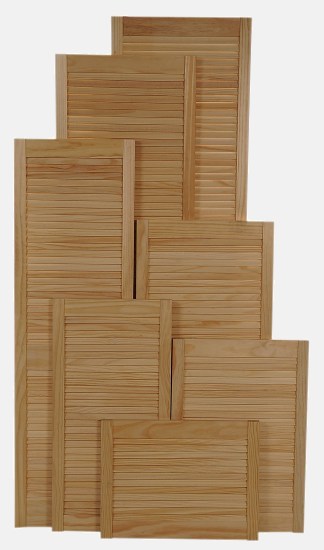

Budget Line Araucaria pine doors
You get a well constructed, knot free door that looks great but at a considerable saving that will appeal to tradesmen and budget minded DIYers alike.
As with all of our doors, Budget Line doors can be trimmed for height and width.
Budget Line Pine louvre doors are supplied to you in individual cellophane packaging and in a natural untreated condition ready for you to stain, wax, oil, varnish or paint to a finish of your choosing.
Budget Line Pine doors have individual louvre blades / slats to allow for airflow. Each slatted/vented louvre blade is fixed in position with a 3mm open air gap between the blades.
If you want to save yourself the chore of painting why not check out the
White Line range of pre primed ready painted white louvre doors?
Budget Line sizes and installation tips.
Louvre doors from Simply Shutters are available in a number of pre set height and widths. The louvres are 'open' to allow airflow.

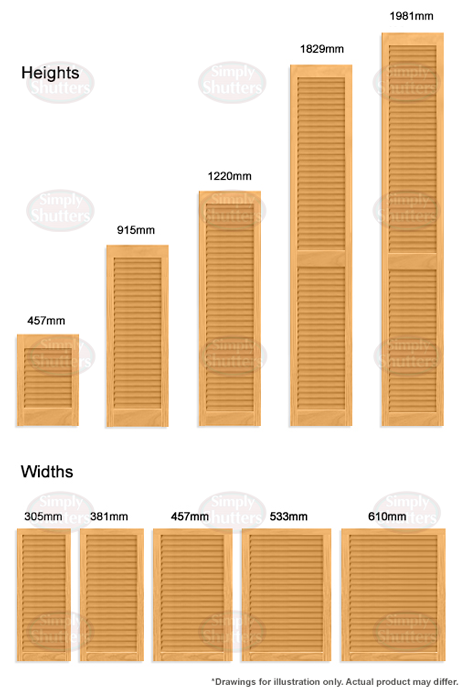

Budget line shutter panel sizes
The doors have sufficient timber (top and bottom) to allow for some trimming. The amount that can be taken off of the overall height of a door depends on the door size as there is more capacity to trim on the taller doors than the shorter doors.
Trimming the overall width is a little trickier. Some easing of the verticals is allowable but we do not recommend taking more than a maximum of 5mm from each side of the vertical frame (stile) otherwise this could seriously weaken the door.
The knot free grain of Araucaria pine doors
The horizontal frame sections (rails) are held to the stile by dowels. Should you cut through one these dowels when trimming, we suggest drilling a pilot hole and then inserting a 3" (75mm) screw through the stile into the rail to replace the lost dowel.
The screw head should be countersunk into the timber and then backfilled with wood filler and sanded for an invisible finish.
Don't forget to allow approximately 3mm per gap to allow for hinges and the easy operation of the door to prevent fouling on the door frame after painting.
The following table can be used to convert some of our popular Budget Line interior louvered door sizes from millimetres to inches.
Louvered Door sizes (mm)
Louvered Door sizes (inches)
