Panel & Louver Shutter

Installation Instructions using screws

For use on any surface including: wood, aluminum, vinyl, stucco, hardboard, brick, or masonry.



For shutters sizes 55" and over, use six screws per shutter. For smaller sizes use four screws per shutter. See figures below right.

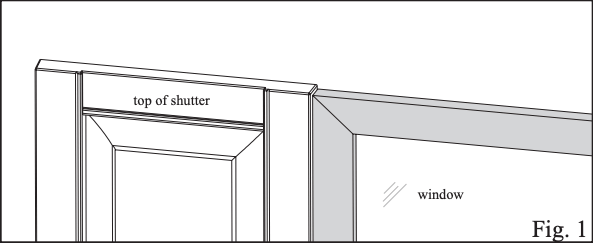

Step 1 Place the shutter next to the window and mark desired location against the wall or window. See Figure 1 at right.

Screw Fixing Fig 1

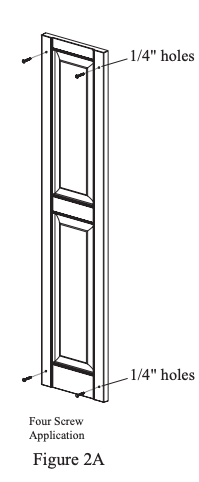

Step 2 When installing shutters smaller than 55", drill (4) 1/4" holes in the locations shown in Figure 2A at right.

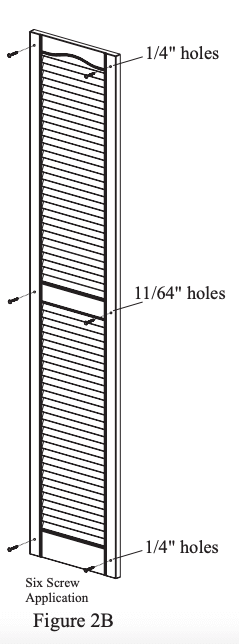

If the shutter is 55" and over, drill (4) 1/4" holes and (2) 11/64" holes in the locations shown in Figure 2B at right.

Screw Fixing Fig 2A
Screw Fixing Fig 2B



Step 3 Reposition the shutter against the wall and screw it into place using the screws provided. Do not over tighten the screws. When installing a shutter 55" and over, screw the two center screws in first (the screws using the 11/64" holes).

Screw Fixing date
