Exterior Dentil Corners

Installation Instructions.



Contents of Endcap Pack:

   1 Endcap (Left)

   1 Endcap (Right)

   4 Rivets

Contents of Inside/Outside Corner Pack:

   1 Inside Corner

   1 Outside Corner

   8 Rivets

Contents of Outside Corner Pack:

   2 Outside Corners

   8 Rivets

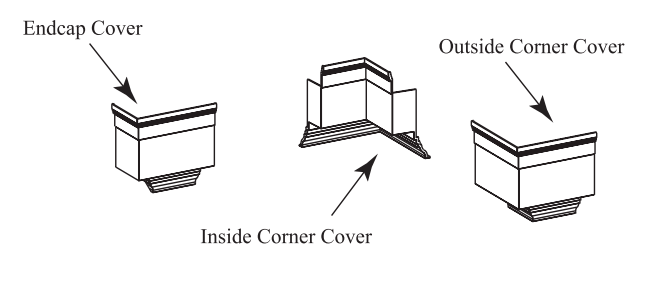

diagram of end cap cover, inside and outside corner covers

-The Exterior Dentil Corners are sold to complete the installation of the Exterior Dentil. There are three styles of corners available.

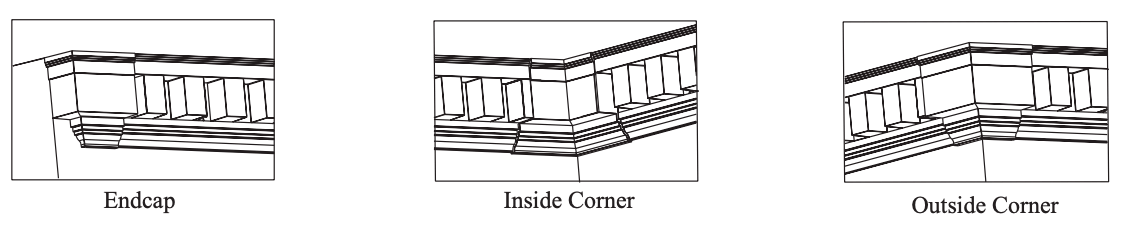

diagram of installed end cap and inside and outside covers



Note: The Exterior Dentil shown in the illustrations are sold separately.



Attach the Endcaps, Inside Corners, and Outside Corners to the Exterior Dentil with the included rivets (use 1/8" drill bit). The covers may also be attached using painted screws (not included). When fastening the bottom surface of the covers to the Exterior Dentil it's necessary that the rivets enter a tooth. The illustrations below show the placement of rivets on the three different covers.

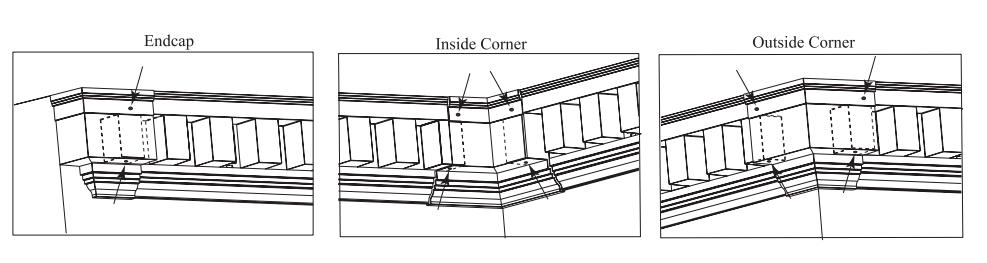

diagram with arrows to show screws hole placement on end cap, inside and outside corners
numbers and letters

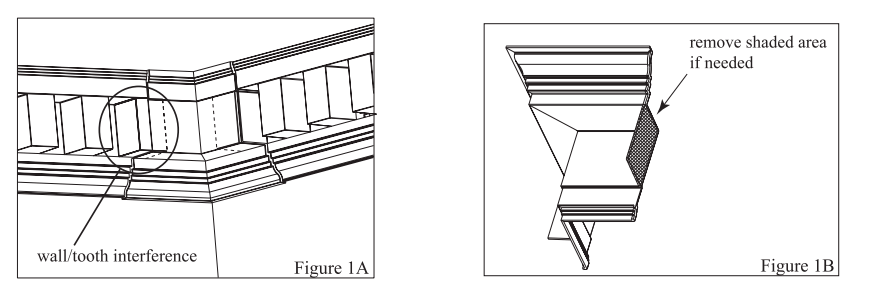

When installing the covers there may be interference between the cover and the dentil tooth. If this occurs remove the wall on the cover as shown in Figure lB by scoring from the back side with a knife.

Note: An Inside Corner Cover is shown in Figures lA and lB as an example. The wall on the Outside Corner Cover and the Endcap Cover may need to be removed also.

diagram showing wall/ tooth interference on dentil trim

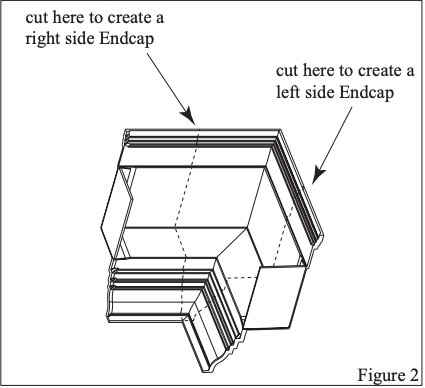

Optional: If needed, Endcaps can be created by cutting Outside Corners at the scribe lines. See Figure 2 below

diagram to show cut points on an end cap
