Shutter Hardware

Installation Instructions

Kit No. MIFASH002

Hinge Installation



Step 1

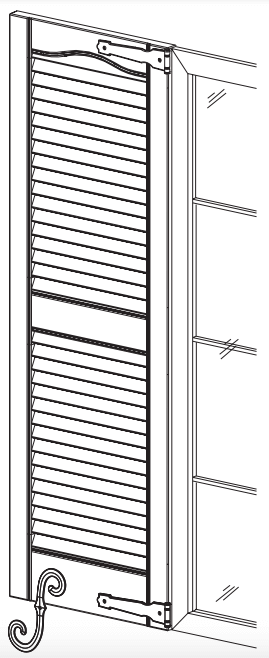

Determine where the hinges will be installed. Typically the hinges are installed near the ends of the shutters. See Figure at right.



Note: If placing hinges over Shutter Loks, be sure the pilot holes don't interfere with the Shutter Loks.



Step 2

Using the marks on the front of the hinges as guides, use an 1/8" drill bit and drill pilot holes through the hinge and shutter



Step 3

Securely attach the hinges to the shutter with the enclosed screws.



"S" Hook Installation

Step 1

Place the "S" Hook in the desired location. Normally the hooks are installed at the bottom corner of the shutter. See Figure 1 at right



Step 2

On the back of the "S" Hook is a fin. This is where the screw will be placed. After the position of the "S" Hook is determined, use an 1/8" drill bit to drill through the fin and into the bottom of the shutter



Step 3

Securely attach the "S" Hook to the shutter using the screws provided.
